Abutments for Cerec/inLab system

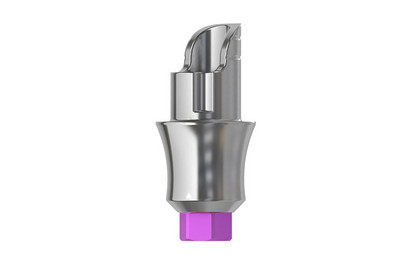

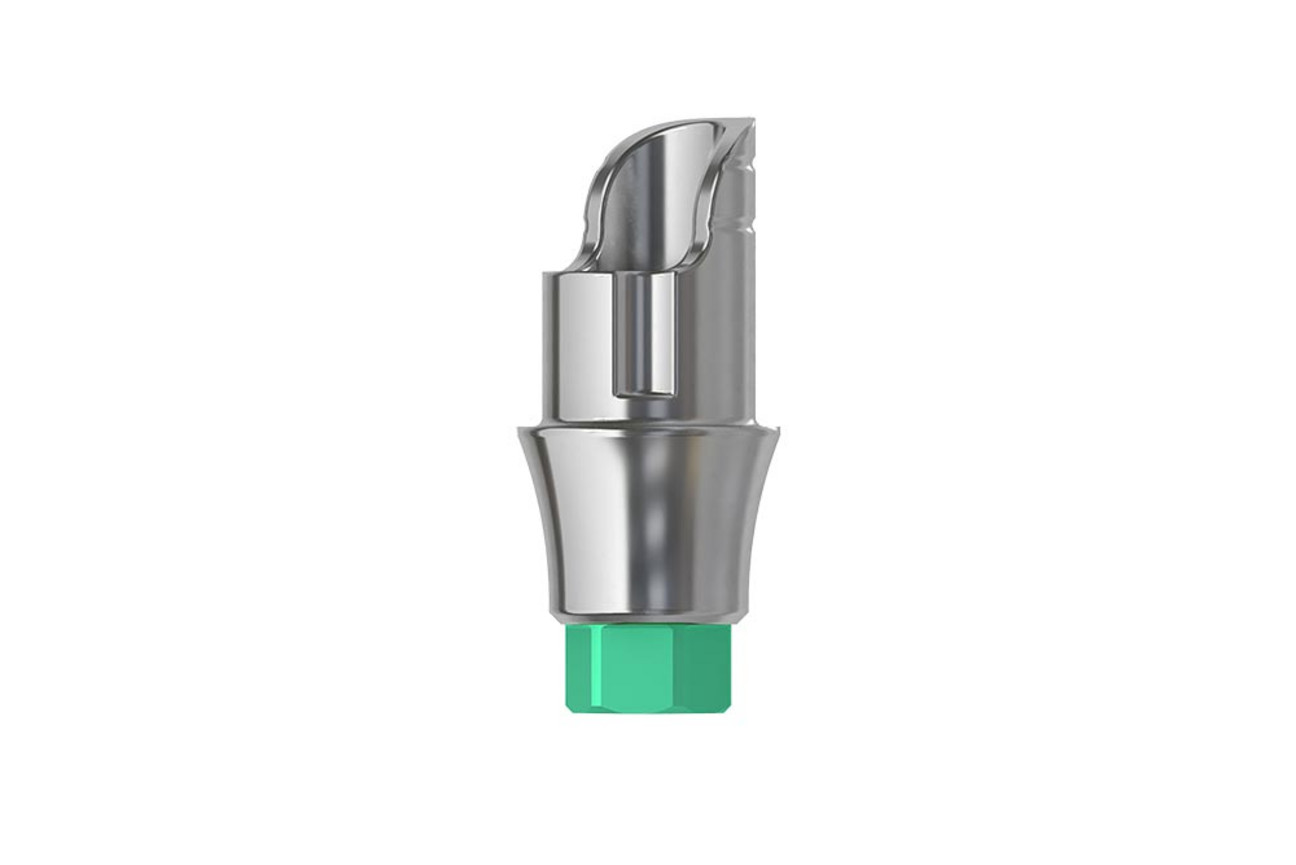

Esthetic Line CAD/CAM - probably the most complete range of CAD/CAM adhesive bases

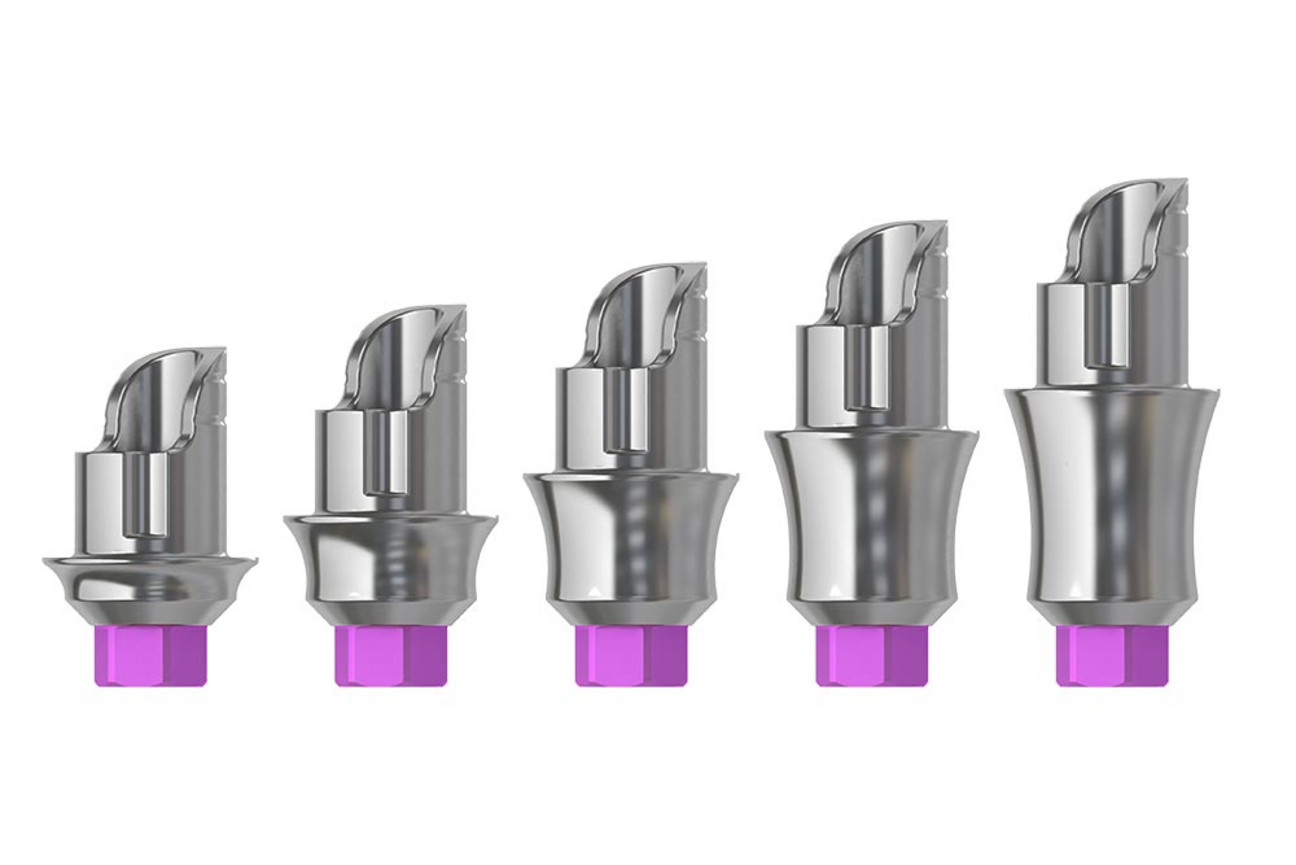

The new Esthetic CAD/CAM adhesive base offers 5 adapted gingival heights and emergence profiles, supporting almost all conceivable requirements for individual patient care.

  • 5 gingival heights to shift the adhesive joint away from the bone
  • 2 chimney heights to increase adhesive area
  • Anti-rotational groove tailored to needs of milling systems

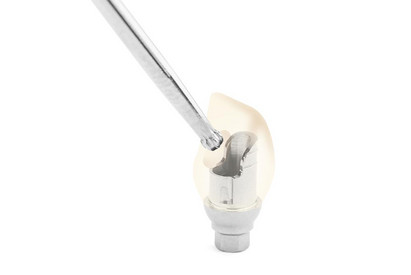

  • Angulated screw channel up to 29°

BEGO CAD/CAM implant prosthetics

In the age of digital change, BEGO is a reliable partner and supports dental technicians and dentists with pioneering technologies.

Products for your in-house production:

  • Esthetic Line CAD/CAM
    • the adhesive base solution for aesthetic customised abutments, fully anatomical abutment crowns and bridges

Service from BEGO:

  • CADAbut Full
    • High-quality solid abutments in TItan and Wirobond® MI+
  • CADAbut Duo
    • Two-piece abutments with adhesive base and e.g. highly aesthetic zirconium solutions
  • CADBase
    • Precise bars and screw-retained bridges on implants made of titanium and Wirobond® MI+

BEGO impresses with outstanding quality and a very wide range of materials. The wide range of modern multicolour zirconia in particular satisfies the highest demands in terms of aesthetics.

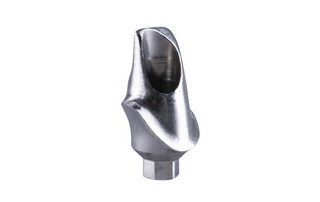

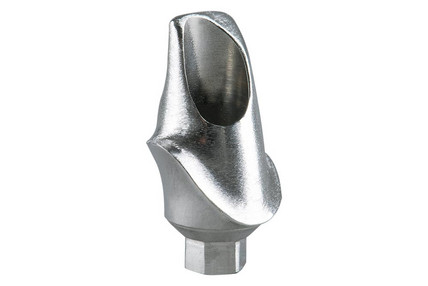

BEGO CADAbut F – one-piece customised abutments

The one-piece solid abutments are customised specifically for each patient and produced in the BEGO high-tech production centre in Bremen according to your design and material specifications.

The abutments can be freely designed, whilst taking the anatomical conditions into account, and thus offer a secure hold for the prosthesis. The emergence profile which is modelled specifically for the patient ensures optimal soft tissue contouring and mucosal support and thus satisfies stringent aesthetic demands in the long term.

The customised abutments are available for the BEGO Semados® implants in the S- and RI-Line, the BEGO Semados® RS/RSX-Line with Platform Switch as well as implant systems from other manufacturers.

All the abutments for the BEGO Semados® implants feature an internal taper connection with hex which has been tried and tested over the last 20 years, guaranteeing a reliable and stable hold. You can choose between three materials: BeCe® CAD Zirkon XH, BEGO Titan Grade 5 and Wirobond® MI+ which offers you maximum flexibility for all indications.

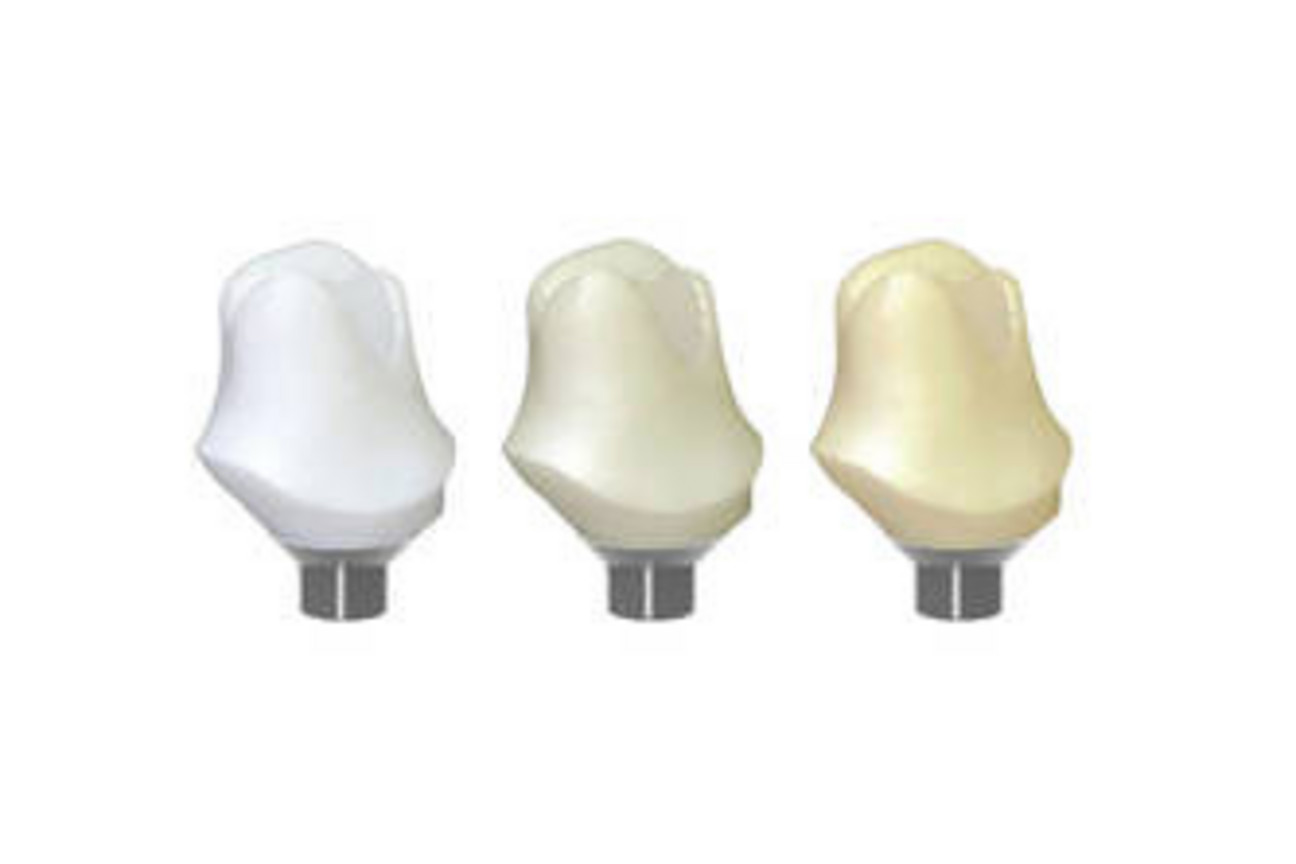

BEGO CADAbut D – two-piece customised abutments

The two-piece customised abutments comprise a titanium adhesive abutment and a customised abutment. The large selection of materials available means this abutment type offers a wide range of prosthetic options.

The titanium bases are adapters with the implant/abutment interface of the respective implant on the implant side and a standardised adhesive abutment on the abutment side. The customised abutment is produced according to your design and material specifications in the BEGO production centre with a defined adhesive gap and subsequently firmly adhered by you to the titanium abutment.

The adhesive abutments made of BeCe® CAD Zirkon XH come in 3 colours (LL0, LL2, LL3) and those made of BeCe® CAD Zirkon+ in 5 colours (LL0 – LL4). The extended colour pallet satisfies the need for highly aesthetic, all-ceramic implant prosthetics. Wirobond® C+, all CAD/Cast® materials and BeCe® Temp are also available.

The customised adhesive abutments for BEGO Semados® S and RI implants are used with the Sub-Tec CAD/CAM titanium adhesive abutments and BEGO Semados® RS/RSX implants with the PS-Line CAD/CAM titanium adhesive abutments. For abutments for other common implant systems, titanium adhesive abutments can be ordered from BEGO Medical or the respective implant manufacturer. A detailed overview of the available auxiliary parts can be found in the "Service Catalogue".

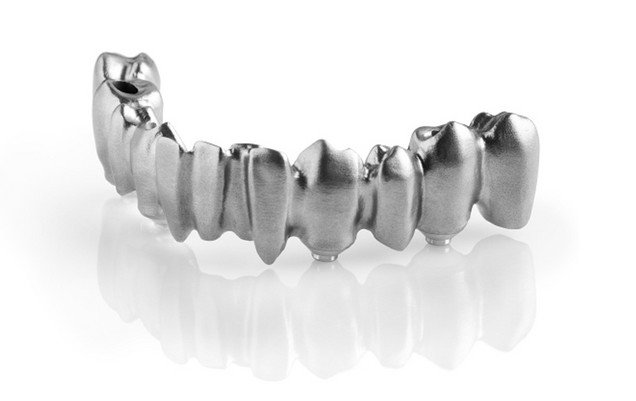

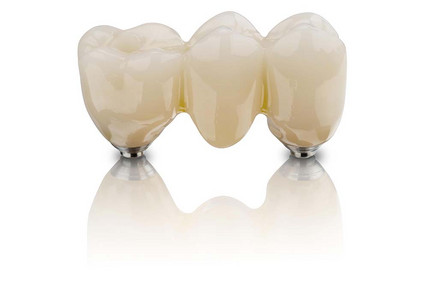

Bar Construction and Occlusally Screw-Retained Bridges

Fixed dentures on implants

Screw-retained implant bridges made of Wirobond® MI+ or BEGO titanium grade 5 can be fabricated at implant and/or abutment level according to your design requirements.

Selection of design types:

  • Thimble bridge
  • Toronto / Canada bridge
  • Wrap Arround Bridge
  • VMK bridge
  • and much more

Esthetic CAD/CAM adhesive bases in combination with the latest zirconia from Kuraray KATANA or VITA Zahnfabrik are ideal for highly aesthetic bridges at implant and/or abutment level. The multicolour materials are characterised by a natural colour gradient and excellent colour fidelity.

Selection of materials

Your wish: best possible colour match to the VITA colour ring.

  • VITA YZ ST / XT colour for partially and fully veneered restorations
  • VITA YZ ST / XT multicolour for monolithic abutment crowns and bridges

Your wish: warm shade and clear colour gradient

  • Kuraray Katana YML for a particularly intensive play of colours and colour gradient

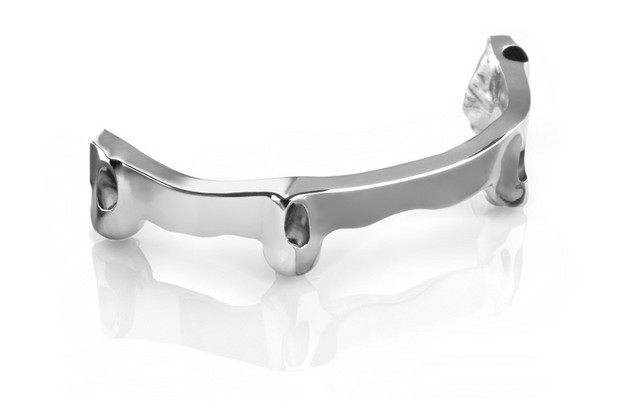

Removable dentures on bars

Wirobond® MI+ and BEGO Titanium Grade 5 are available as materials for bars. Today, bar overhangs are mainly produced using hybrid manufacturing, a modern process that combines SLM (selective laser sintering) and a subsequent precise milling process.

Selection of design types:

  • Round bars
  • Preci-Horix bars
  • Dolder® bar joints
  • Dolder® bar slides
  • Individual


Ordering Options for BEGO CAD/CAM Restorations

BEGO material and Semados® abutment libraries for the three leading CAD software systems* are available for download for your own fabrication. You can order the required adhesive bases or pre-milled blanks in our BEGO eShop.

Depending on how far you have already progressed with the digitalisation of your processes in the laboratory, you can alternatively send us scan data, design data or plaster models and we will manufacture your high-quality implant restorations on your behalf.



Ways to send your desired restorations:

  • BEGO File Generator
    • A small additional programme via which you can send your designs directly to our production department. Our recommendation for a smooth production process.
  • Design data from 3shape, exocad and dental Wings. Send to us via your CAD software
  • STL
  • Scan data in STL format with Design Service
  • Plaster model with scan & design service

* The current CAD software solutions from 3Shape, exocad and DentalWings are supported. These are companies that do not belong to the BEGO Group.


Downloads




For questions regarding custom-fabricated BEGO CAD / CAM implant prosthetics (procedure or conditions), please contact us at:

BEGO Medical GmbH
Wilhelm-Herbst-Straße 1
D-28359 Bremen
Telephone: +49 421 2028-147
Fax: +49 421 2028-44147
Email: info@bego-medical.com
