Product details
Technical data
Height 420 mm
Height with optical waveguide 650 mm
Width 600 mm
Depth 670 mm
Rated voltage 230 VAC, 50/60 Hz
Power at rated voltage of 230 VAC 16 A
Compressed air connection (Connection thread 1/4‘‘) at least 5 bar (0.5 [MPa])
Air consumption approx. 100 l/min
Weight approx. 64 kg

ERROR: Content Element with uid "65440" and type "uebb_bootstrap_tabs_tab" has no rendering definition!

Product details
Scope of delivery Contents Presentation REF
Nautilus® CC plus, 230 VAC, 50/60 Hz   piece 26475
Ceramic crucibles (each made of 2 halves) 4 pieces pack 52488
Plastic handles for ceramic crucibles 2 pieces pack 52436
Ceramic handles for ceramic crucibles 2 pieces pack 52467
Graphite ingots 2 pieces each piece 52468
Glass carbon cylinder 1 piece each piece 52473
Forceps   piece 30002
Mould holder plate, ceramic   piece 30259
Mould holder (ceramic) for sizes 1 and 9   piece 12257
Mould holder (ceramic) for sizes 3 and 6   piece 13362
Mould holder plate (metal grid) for partial denture (25 mm high)   piece 37618
Mould holder plate (metal grid) for partial denture (15 mm high)   piece 10073
Base socket mould formers, sizes 3, 6 and 9 1 piece each piece –
Partial denture funnel former   pack 52068
Product details
Accessories
Compressed air tank with wall bracket   piece 16260
Printer for casting logs (for previous version of unit)   pack 16267

ERROR: Content Element with uid "65461" and type "uebb_bootstrap_contentBox" has no rendering definition!

ERROR: Content Element with uid "65443" and type "uebb_bootstrap_tabs_tab" has no rendering definition!

ERROR: Content Element with uid "65637" and type "uebb_bootstrap_contentBox" has no rendering definition!

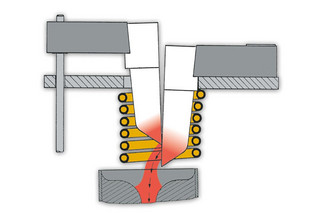

Nautilus vacuum pressure casting concept The molten mass flows from the hot zone of the crucible directly into the casting mould
Nautilus vacuum pressure casting concept
The molten mass flows from the hot zone of the crucible directly into the casting mould

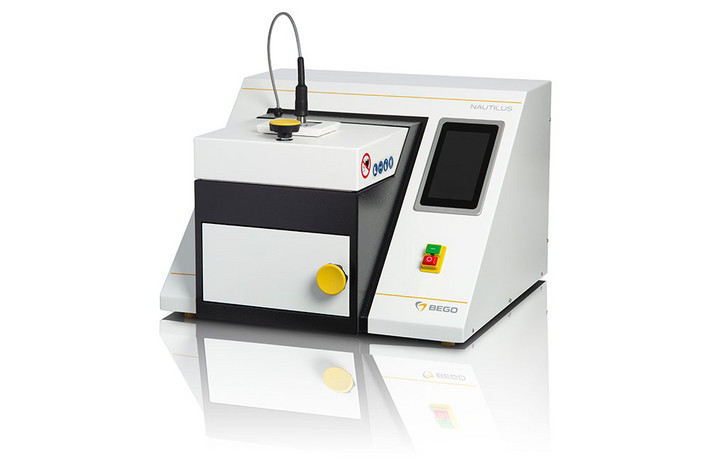

Nautilus® CC plus – Das kompakte Tisch-Vakuum-Druckgussgerät mit integrierter Power-Kühlung, Induktionsheizung und automatisiertem Gussprozess

ERROR: Content Element with uid "65445" and type "uebb_bootstrap_tabs_tab" has no rendering definition!

Nautilus® CC is equally suitable for both non-precious and precious metal alloys, as well as partial denture casting. The integrated fully automatic temperature measuring system uses multi-channel temperature measurement to determine the exact temperature of the melt and fully automatically triggers the casting process.

  • Network connection via LAN or WLAN enables access to the integrated casting log archives (up to 1,000 casting logs)
  • The connection via the service portal* my.Bego.com enables direct remote diagnosis of the device
  • Casting point recognition ensures that the cast objects are filled at the temperature recommended by the alloy manufacturer
  • Large 7“ touch display with intuitive menu navigation for convenient and easy operation
  • High-performance induction heating guarantees short melting cycles, minimises oxidation and thus facilitates subsequent finishing
  • Integrated power cooling provides for over 50 casts in a row, even with high ambient temperatures with moulds made of phosphate-bonded investment materials
  • Integrated cooling saves water and helps to protect the environment
  • Suitable for all commercially available precious metal and non-precious alloys (excluding titanium)
  • Compact dimensions and design give the Nautilus® CC plus a very small footprint
  • Eco mode switches off all unnecessary components in idle mode and reduces operating costs

ERROR: Content Element with uid "65450" and type "uebb_bootstrap_tabs_container" has no rendering definition!

* BEGO customers have access to all relevant user-specific information and services on the my.BEGO.com service portal.
