VarseoSmile Crown plus

The ceramic filled hybrid material for 3D printing of permanent restorations

Advantages for the laborator

  • Specially for the resin developed printing and processing parameters ensure an accurate fit and smooth production sequences with reproducible results at any time
  • The chemical and mechanical properties of the material are specially adapted to dental applications
  • Versatile use: as a single crown on natural tooth or abutment, as an inlay, onlay and veneer, and as a veneer on metal frameworks
  • Objects that have already been printed can be adapted and repaired outside the patient‘s mouth while maintaining stability with VarseoSmile Crown plus or will simply be reprinted due to low material costs
  • Minimized resin sedimentation for easy handling, no mixing or shaking necessary with regular use
  • Easy to grind and polish by using standard tools
  • Seven shades according to the proven VITA* classical shades:
    A1, A2, A3, B1, B3, C2, D3. Additionally available in BEGO Bleach shade.
  • FDA 510(k) cleared and fulfills all the requirements for a Class II medical device**
  • Thanks to the full integration into the digital workflow and the low material costs, a fast supply option with an excellent price-performance ratio is made possible
  • Validated on many 3D printers from well-known manufacturers

Advantages for the practitione

  • The chemical and mechanical properties of the material are specially adapted to dental applications
  • Easy to grind and polish by using customary tools
  • FDA 510(k) cleared and fulfills all the requirements for a Class II medical device**
  • Thanks to the full integration into the digital workflow and the low material costs, a fast supply option with an excellent price-performance ratio is made possible
  • Scientifically proven high bond strength with commercially available luting agents
  • Clear visibility of restorations made of VarseoSmile Crown plus on radiographs
  • Secure fixing of printed objects in the patient‘s mouth with only minimal effort to prepare the contact surfaces
  • Extensive scientific studies by renowned universities and institutes confirm the excellent features of the restorations made of VarseoSmile Crown plus

Advantages for the patient

  • High aesthetics thanks to a balanced ratio of opacity and translucency
  • Fluorescence of the printed objects resembles that of the natural tooth
  • Low tendency to age and discolor thanks to very low water absorption
  • Low plaque accumilation due to smooth surface
  • High comfort thanks to low cold and heat sensitivity
  • Antagonist-friendly material with mechanical buffering effect – ideal for implant-supported crowns
  • Minimized formation of secondary caries thanks to a high adhesive bond with luting composites
  • Certified biocompatibility

Indication range

The VarseoSmile Crown plus material is used for 3D printing of permanent restorations such as single crowns, inlays, onlays, and veneers for anterior and posterior areas including occlusal surfaces.

Shades

VarseoSmile Crown plus is available in seven shades according to the VITA * classical shade system: A1 Dentin / A2 Dentin / A3 Dentin / B1 Dentin / B3 Dentin / C2 Dentin / D3 Dentin / BL Dentin

Technical specifications
Color A1, A2, A3, B1, B3, C2, D3, BL
Density approx. 1.4 – 1.5 g/cm3
Viscosity 2,500 – 6,000 mPa*s
Flexural strength 116 – 150 MPa**
Flexural modulus 4,090 MPa
Hardness ≥ 90 Shore D
Water solubility < 1 µg/mm3
Water sorption < 12 µg/mm3
Chemical composition
Esterification products of 4.4'-isopropylidiphenol, ethoxylated and 2-methylprop-2enoic acid. Silanized dental glass, methyl benzoylformate, diphenyl (2,4,6-trimethylbenzoyl) phosphine oxide.
Total content of inorganic fillers (particle size 0.7 μm) is 30 – 50 % by mass.
Availability
Availability Contents*** REF
VarseoSmile Crown plus A1 500 g bottle 41107
VarseoSmile Crown plus A2 500 g bottle 41108
VarseoSmile Crown plus A3 500 g bottle 41109
VarseoSmile Crown plus B1 500 g bottle 41110
VarseoSmile Crown plus B3 500 g bottle 41111
VarseoSmile Crown plus C2 500 g bottle 41112
VarseoSmile Crown plus D3 500 g bottle 41113
VarseoSmile Crown plus BL 500 g bottle 41114
VarseoSmile Crown plus A1 250 g bottle 41117
VarseoSmile Crown plus A2 250 g bottle 41118
VarseoSmile Crown plus A3 250 g bottle 41119
VarseoSmile Crown plus B1 250 g bottle 41120
VarseoSmile Crown plus B3 250 g bottle 41121
VarseoSmile Crown plus C2 250 g bottle 41122
VarseoSmile Crown plus D3 250 g bottle 41123
VarseoSmile Crown plus BL 250 g bottle 41124

*** The use of the 250 g bottles is recommended for the Varseo XS 3D printer.

Versatile

  • VarseoSmile Crown plus can be used for 3D printing definitive restorations such as single crowns, partial crowns, crowns on abutments, inlays, onlays, tabletops and veneers in the anterior and posterior region including occlusal surfaces.
  • Antagonist-friendly material with mechanical buffer effect, ideal for implant-supported crowns
  • Thanks to the full integration into the digital workflow and the low material costs, a same-day treatment option with an excellent price-performance ratio is made possible

Safe

  • Extensive scientific studies by renowned universities and institutes confirm the excellent features of the restorations made of VarseoSmile Crown plus
  • Certified biocompatibility: Not cytotoxic, not irritating, not sensitizing,not pyrogenic, not genotoxic or mutagenic
  • Meets the requirements for a Class IIa product according to MDR and is FDA 510(k) cleared as a Class II medical device**

Aesthetic

  • VarseoSmile Crown plus is available in seven shades according to the VITA* classical shade system and one Bleach shade: A1 Dentin / A2 Dentin / A3 Dentin / B1 Dentin / B3 Dentin / C2 Dentin / D3 Dentin / BL Dentin
  • Excellent esthetics due to balanced ratio of opacity and translucency
  • Fluorescence of the printed objects resembles that of the natural tooth

Simple

  • Clear visibility of restorations made of VarseoSmile Crown plus on radiographs
  • Minimized resin sedimentation for easy handling, no mixing or shaking necessary with regular use
  • Easy to grind and polish with standard tools

Light-curing

The light polymerization can be achieved with the BEGO Otoflash (two xenon stroboscopic lamps, flash frequency 10 Hz, light spectrum 300 – 700 nm) or with the HiLite Power*, Fa. Heraeus Kulzer* (one xenon stroboscope lamp, flash frequency 20 Hz, light spectrum 390 – 540 nm).

Individualization

The final polymerized objects can be customized using commercially available veneering composites and composite stains. The instructions for use of the material manufacturer must be observed.

Required light-curing time
Light-curing device Light-curing CommentsBEGO Otoflash
(with protective gas) 2 × 1,500 flashes Turn object between the exposure cycles
HiLite Power 2 × 90 seconds Turn object between the exposure cycles

Preparation

In order to ensure the successful production of restorations from VarseoSmile Crown plus the following points must be taken into account prior to preparation:

  • The preparation boundaries must be clearly visible
  • In terms of the preparation depth, the minimum wall thicknesses for the restoration of 1 mm must be observed
  • A chamfer or step preparation is recommended

As a rule, anatomically reduced preparation is recommended. Special care must be taken to ensure that no sharp angles or edges are created in order to avoid stress peaks in the frame material. These should be broken off before taking the impression using a suitable instrument, e.g., a flexible plastic diamond wheel.

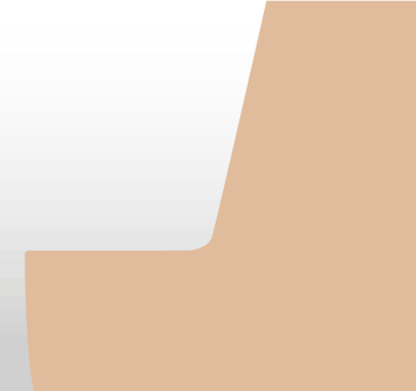

Step preparation
Step preparation

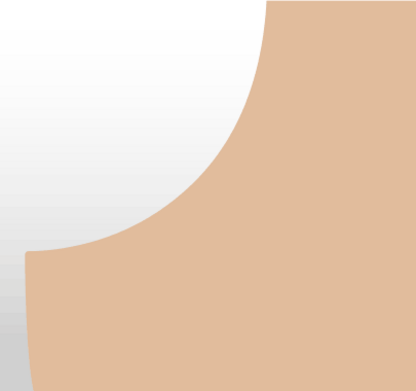

Chamfer preparation
Chamfer preparation

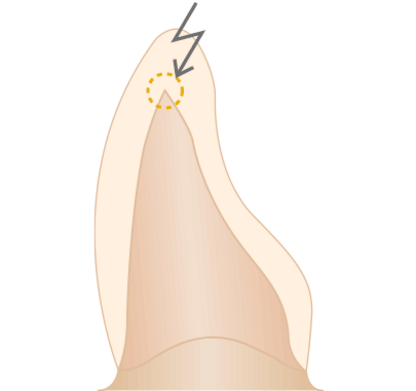

Avoidance of sharp edges
Avoidance of sharp edges

Luting

Permanent restorations made of VarseoSmile Crown plus can be attached with commercially available self-adhesive cements (e.g. RelyX Unicem*, 3M Espe*) or composite cements with primer (e.g. Variolink Esthetic DC* and Monobond Plus*, Ivoclar Vivadent* as well as Panavia V5*, Kuraray Noritake). Observe the instructions for use of the luting agent.

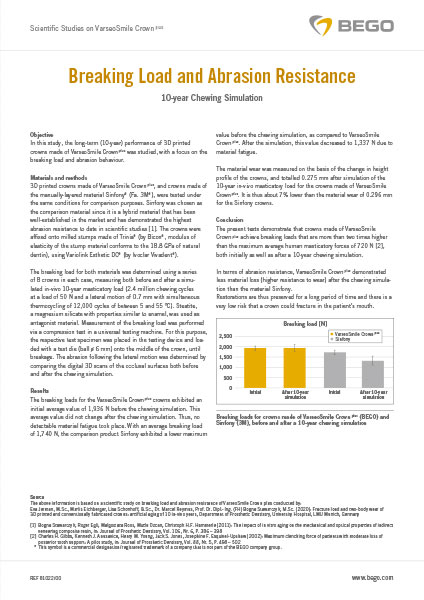

Scientific Studies

Scientific Studies

More

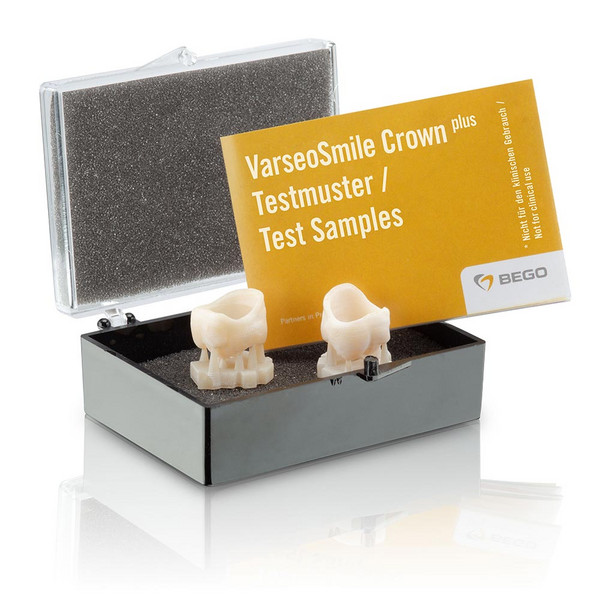

Free 3D Printed Sample

VarseoSmile Crown plus – Free Printing Sample

Order now

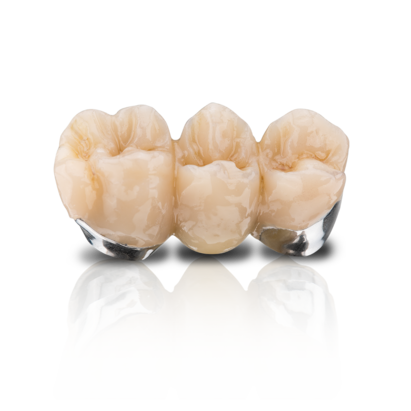

Smart Veneering with VarseoSmile Crown plus – Simply intelligent!

Smart Veneering with VarseoSmile Crown plus
— Simply intelligent! —

Smart Veneering is the intelligent use of digital design and fabrication capabilities to veneer metal frameworks in a fraction of the time it would take using conventional procedures.

Learn more...

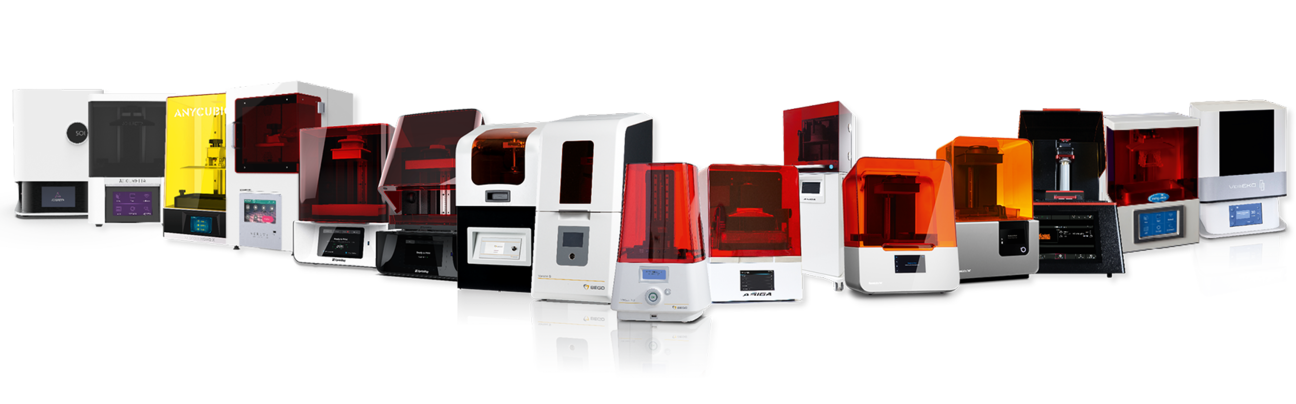

Compatible 3D Printers at a Glance

std_bild_wide_comp-alle-Drucker_7

More…

Get started now!

You want to use the various advantages of our hybrid material for 3D printing of permanent restorations?
Your responsible BEGO Area Sales Manager and our Sales Team will be happy to assist you by e-mail or phone:

Benelux: Bart.vanderAuwelaer@BEGO.com | +32 475 59 80 41

Eastern EU countries: Iirja.vonBargen@BEGO.com | +49 421 20 28-222

France: Isabelle.Haken@BEGO.com | +49 421 2028-226

Italy: Gaetano.Quaranta@BEGO.com | + 39 331 738 93 04

Spain: BEGOiberia.Dental@BEGO.com | +34 93 371 28 68

UK: Irja.vonBargen@BEGO.com | +49 421 20 28-222

Other EU countries: Irja.vonBargen@BEGO.com | +49 421 20 28-222

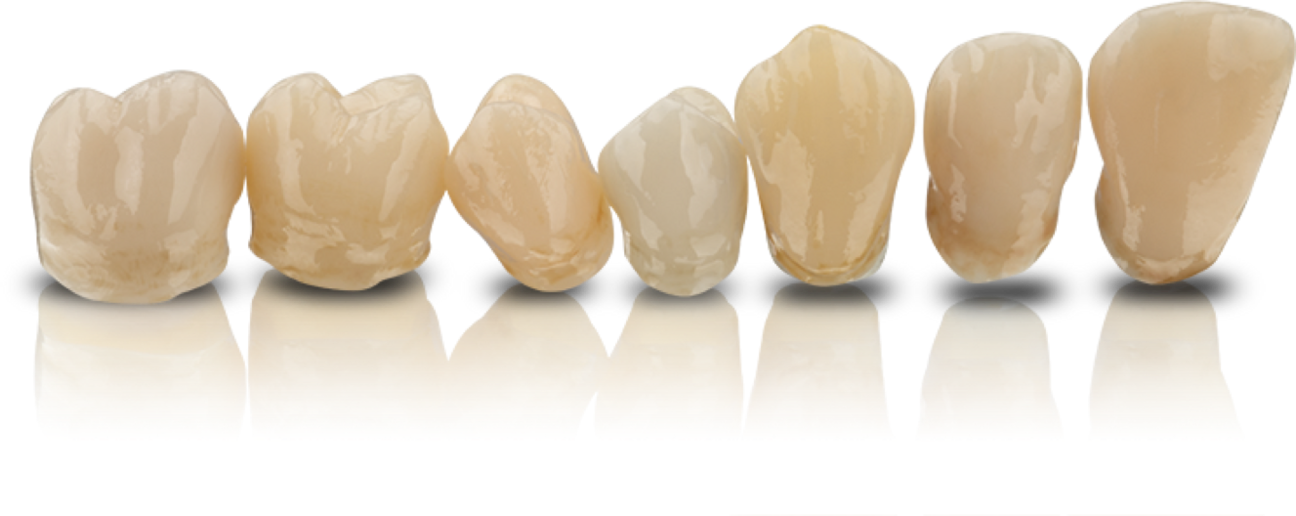

VarseoSmile-Crown-plus-7-Kronen

More 3D printing materials

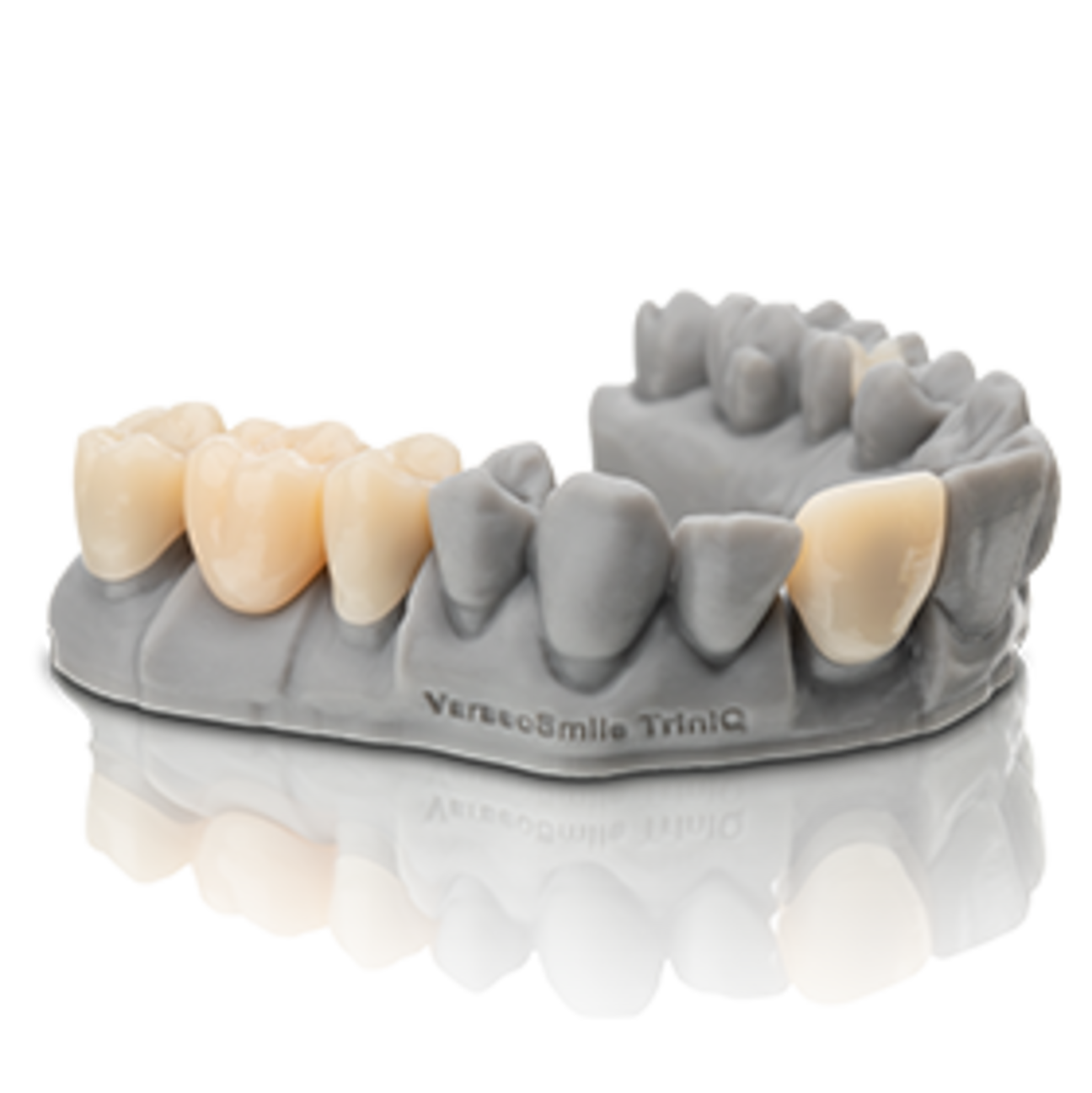

VarseoSmile® TriniQ

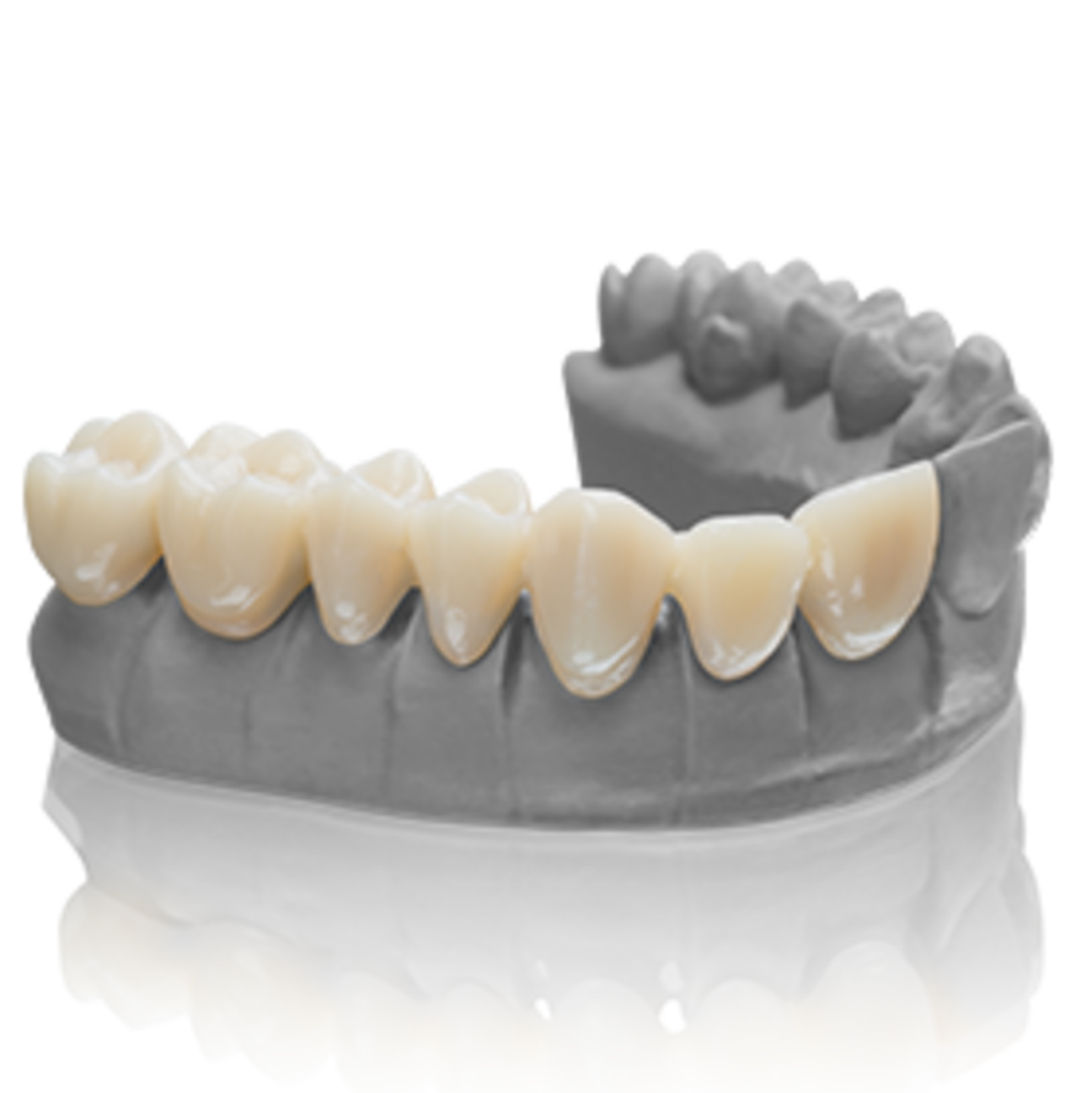

imgIndikationen_3D-Druck-start_140x140_SmileTemp-gray
imgIndikationen_3D-Druck-start_140x140_Model-gray

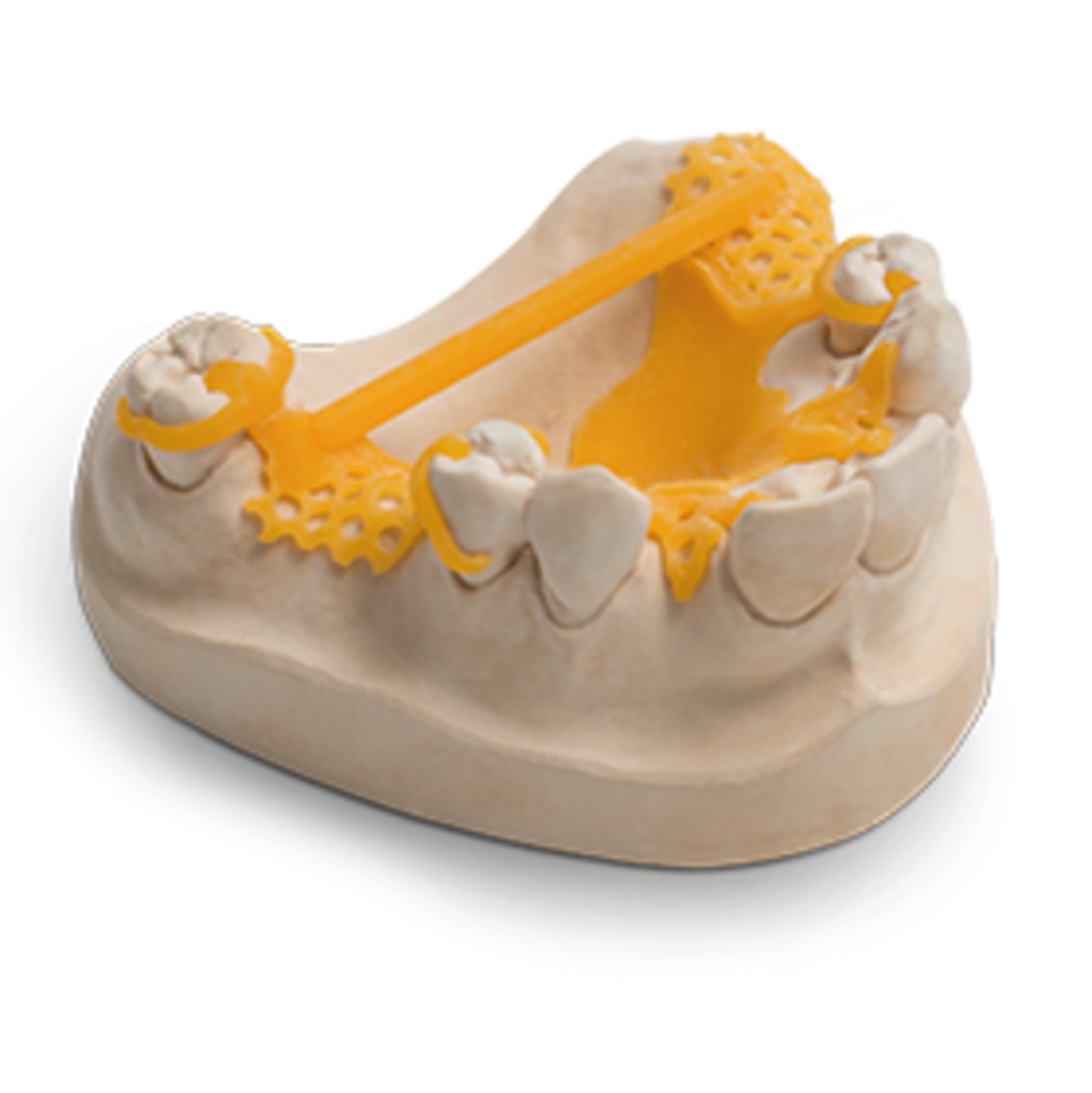

imgIndikationen_3D-Druck-start_140x140_CAD-Cast

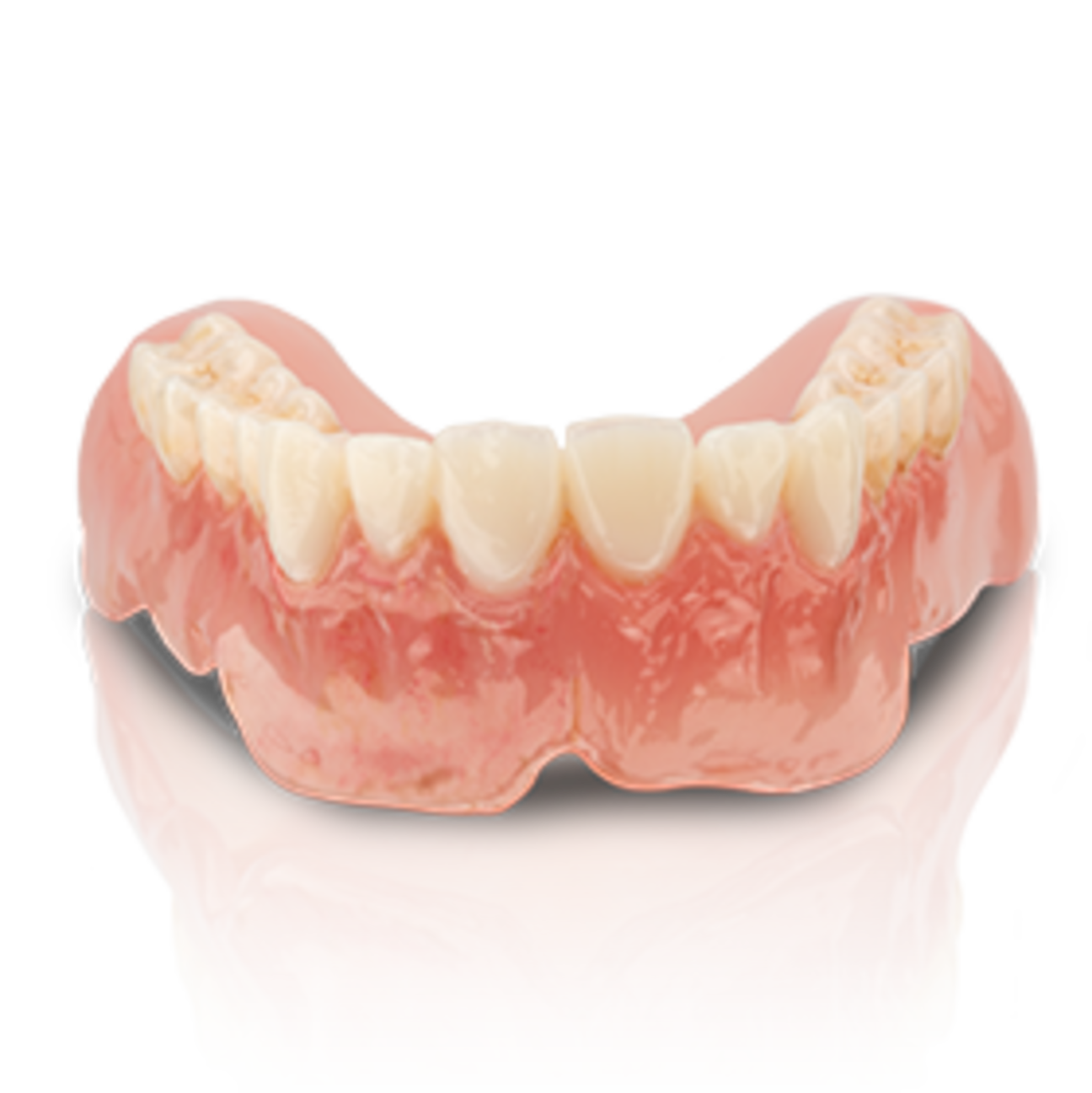

VarseoSmile® Teeth
